File structure

Summary

A tour of the directories a default Dotkernel API installation ships with — bin for CLI entry points, config and config/autoload for application and service configuration, data for caches, lock files and OAuth keys, log for daily logs, public as the web entry point, and src for the modules — plus the folders and files each module is expected to contain.

Details

The Dotkernel API file structure follows the PSR-4 standards. Standardizing the file structure of your project is considered good practice because it makes it easier to find and navigate the code.

When using Dotkernel API, the following structure is installed by default:

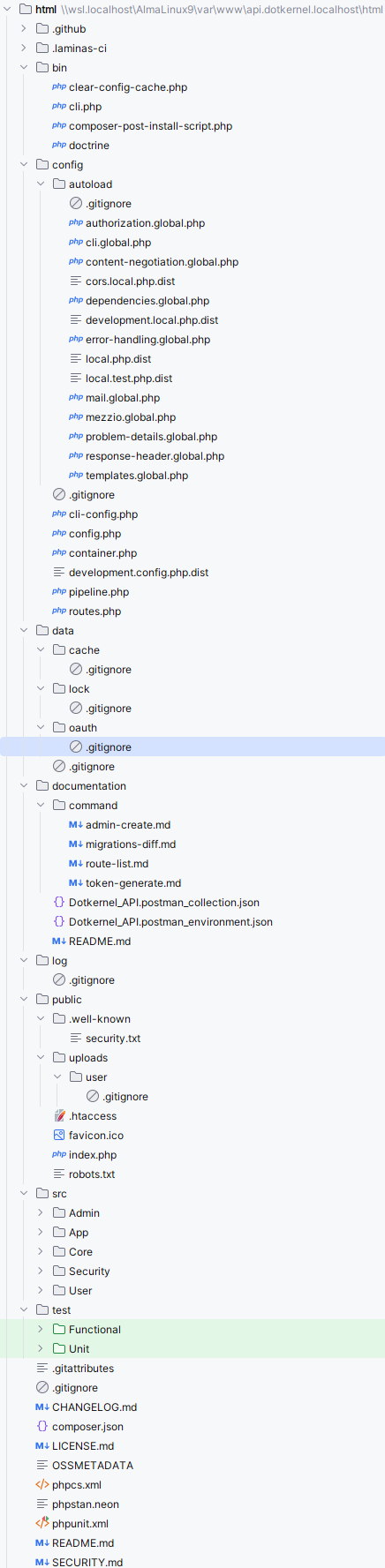

Dotkernel API File Structure!

Special purpose folders and files

  • .github - Contains GitHub workflow files
  • .laminas-ci.json - laminas-ci configuration; a single file, not a folder
  • documentation - Postman and Bruno collections for the shipped endpoints, plus notes on the CLI commands

bin folder

This folder contains:

  • clear-config-cache.php - Removes the config cache file data/cache/config-cache.php; can also be invoked as composer clear-config-cache
  • cli.php - Used to build console applications based on laminas-cli
  • composer-post-install-script.php - Runs after composer install and copies the shipped distributable config files into place; it asks nothing and needs no input
  • doctrine - Doctrine ORM console, used by the fixtures commands to populate the database tables
  • generate-oauth2-keys.php - Generates the OAuth2 key pair and encryption key into data/oauth

config folder

This folder contains all application-related config files:

  • cli-config.php - Doctrine Migrations entry point; builds the DependencyFactory from the doctrine.migrations config
  • config.php - Registers ConfigProviders for installing packages, and sets the config cache path
  • container.php - Main service container that provides access to all registered services
  • development.config.php.dist - Activates debug mode; gets symlinked as development.config.php when enabling development mode
  • pipeline.php - Contains a list of middlewares, in the order of their execution
  • routes.php - Application-wide route registration; ships empty, because each module declares its own routes in its RoutesDelegator

Note

There is no config/migrations.php. Migration settings — the doctrine_migration_versions table and the src/Core/src/App/src/Migration path — are declared in Core\App\ConfigProvider and read through config/cli-config.php.

config/autoload folder

This folder contains all service-related local and global config files:

  • authorization.global.php - Configures access per route for user roles
  • cli.global.php - Configures cli
  • content-negotiation.global.php - Configures request and response formats
  • cors.local.php.dist - Configures Cross-Origin Resource Sharing, like call origin, headers, cookies
  • dependencies.global.php - Sets global dependencies that should be accessible by all modules
  • development.local.php.dist - Gets symlinked into place when enabling development mode; activates error handlers
  • error-handling.global.php - Configures and activates error logs
  • local.php.dist - Local configuration file: database credentials, application name and URL, OAuth2 key paths
  • local.test.php.dist - Local configuration for functional tests
  • mail.local.php.dist - Mail configuration; e.g. sendmail vs smtp, message configuration, mail logging. Not committed: the post-install script copies it out of dotkernel/dot-mail during installation
  • mezzio.global.php - Mezzio core config file
  • problem-details.global.php - Maps HTTP status codes to the type URI used in problem details responses
  • response-header.global.php - Defines headers per route
  • templates.global.php - Configures Api\App\Template\RendererInterface, including the phtml template extension

Note

Doctrine is not configured from this folder. There is no doctrine.global.php; ORM, migration and fixture settings come from the module ConfigProviders, and connection credentials from the local config file.

data folder

This folder is a storage for project data files and service caches. It contains these folders:

  • cache - Holds config-cache.php, the merged configuration cache written when ConfigAggregator::ENABLE_CACHE is on
  • oauth - Encryption, private and public keys needed for authentication
  • lock - Contains lock files generated by dotkernel/dot-cli

AVOID storing sensitive data on the repository!

Note

There is no data/doctrine. Migrations live in src/Core/src/App/src/Migration and fixtures in src/Core/src/App/src/Fixture, both inside the Core module.

log folder

This folder stores daily log files. When you access the application from the browser, (if not already created) a new log file gets created in the format specified in the config/autoload/error-handling.global.php config file under the stream array key.

public folder

This folder contains all publicly available assets and serves as the entry point of the application:

  • uploads - Normally contains files uploaded via the application
  • .htaccess - Server configuration file used by Apache web server; it enables the URL rewrite functionality
  • .well-known - Contains security.txt, the RFC 9116 contact file for reporting vulnerabilities
  • favicon.ico - The site icon browsers request by default
  • index.php - The application's main entry point
  • robots.txt - Allows or denies bot access to parts of your application; it is a live file, so edit it to match your environment

src folder

This folder contains a separate folder for each Module.

These are the modules included by default:

  • Admin - Contains functionality for managing users with admin role; note these are users save in the admin database table
  • App - Contains functionality such as error reporting
  • Core - Contains core functionality, from authentication, to rendering
  • Security - Contains security-related functionality
  • User - Contains functionality for managing regular users

Core is itself split by domain under src/Core/src, into Admin, App, Security, Setting and User. See Core and App.

Module contents

Each Module folder, in turn, should contain the following folders, unless they are empty:

  • src/Handler - Action classes (similar to Controllers but can only perform one action)
  • src/Entity - Used by database entities
  • src/Service - Service classes
  • src/Repository - Entity repository folder

The above example is just some of the folders a project may include, but they should give you an idea about the recommended structure. Other classes the src folder may include are InputFilter, EventListener, Helper, Command, Factory etc.

The src folder in each Module folder normally also contains these files:

  • ConfigProvider.php - Configuration data for the module
  • OpenAPI.php - Detailed descriptions for each endpoint in the OpenAPI format
  • RoutesDelegator.php - Module specific route registrations

templates folder in Modules

This folder contains the template files, used, for example, to help render e-mail templates. Of the shipped modules only User has one, at src/User/templates/user.

Templates are rendered by Api\App\Template\Renderer, a lightweight renderer for files combining PHP and HTML. All template files have the extension .phtml. The extension is set in config/autoload/templates.global.php and Twig is not used anywhere in the application.

See Rendering and sending emails.

FAQ

Q: Which standard does the structure follow?

A: PSR-4 autoloading, so a class's namespace maps directly onto its path.

Q: Where does my own code go?

A: In a new folder under src, alongside the default Admin, App, Core, Security and User modules. See Core and App.

Q: Which files must every module have?

A: ConfigProvider.php for its configuration, RoutesDelegator.php for its routes and OpenAPI.php for its endpoint documentation.

Q: What folders does a module typically contain?

A: Handler, Entity, Service and Repository, omitting any that would be empty. Modules commonly also add InputFilter, EventListener, Helper, Command and Factory.

Q: Which directories need to be writable?

A: data, log and public/uploads. See Clone the project.

Q: What is the application's entry point?

A: public/index.php. Only the public folder is served directly; everything else is routed through it by the .htaccess rewrite rules.

Q: Where is the middleware pipeline defined?

A: config/pipeline.php, which lists the middlewares in execution order. See Middleware flow.

Q: Why is config/routes.php empty?

A: Because routes are declared per module. Each module's RoutesDelegator is registered as a delegator on Mezzio\Application in its ConfigProvider, so config/routes.php is left as an empty callable for application-wide routes you may want to add.

Q: What is the difference between config and config/autoload?

A: config holds application-level wiring — the container, the pipeline, the config aggregator. config/autoload holds per-service configuration, split into committed *.global.php files and uncommitted local ones shipped via their distributable equivalents.

Q: Where are the database migrations and fixtures?

A: In src/Core/src/App/src/Migration and src/Core/src/App/src/Fixture. Both paths are declared in Core\App\ConfigProvider, not in a file under config. See Generate database migrations.

Q: Where are the OAuth2 keys kept?

A: In data/oauth. They are generated by bin/generate-oauth2-keys.php during installation and must never be committed. See OAuth2 security.

Q: Which templating engine is used?

A: None of the usual ones. Api\App\Template\Renderer renders .phtml files directly; there is no Twig anywhere in the codebase. See Rendering and sending emails.
